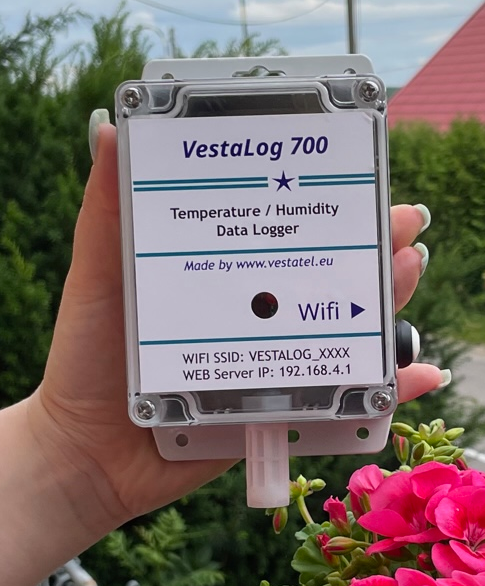

VestaLog 700 Temperature / Humidity Data Logger

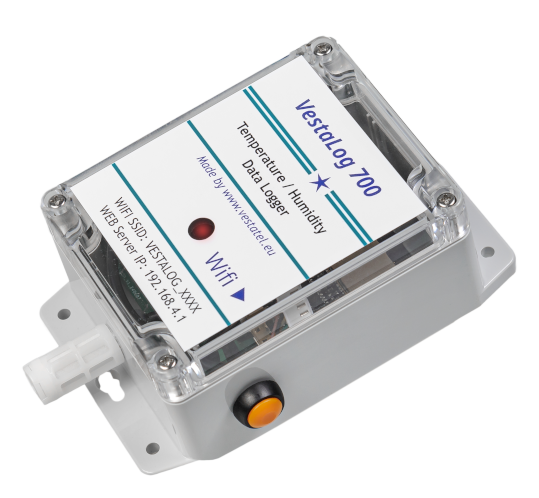

Designed in a robust weather-proof casing the logger can be used outdoor or in-door

The logger features highly accurate combined temperature and relative humidity sensor with a wide range internal flash storage, WIFI, built-in web server and MQTT client

The logger Runs on a D cell high energy density user replaceable battery, providing 1-2 years of maintenance-free autonomous operation

VestaLog 700 Key Features

  Weather-Proof Enclosure: - Built to withstand outdoor conditions, ensuring long-term durability and reliability (NEMA, IP65, UV Stabilized)

  Integrated Temperature and Humidity Sensor: provides accurate and reliable measurements

  Internal Flash Storage - ensuring data integrity and availability

  Real-Time Clock: With an internal battery backup, ensures accurate time-stamping of all records

  Autonomous Operation: Runs on a D cell high energy density user replaceable battery, providing 1-2 years of maintenance-free operation

  Built-in WiFi and Web Server: For easy configuration and status monitoring

  Configurable MQTT Client: Allows for real-time data transmission while logging measurements to internal storage

Areas of Application

  Agriculture: Helps farmers monitor and adjust conditions to maximize crop yield and healths

  Environmental Monitoring: Ideal for tracking and analyzing climate data in greenhouses, laboratories, and outdoor research stations

  Warehouse Management Monitor temperature and humidity to ensure optimal storage conditions for sensitive goods such as pharmaceuticals, food products, and electronics

  HVAC Systems monitor and optimize heating, ventilation, and air conditioning systems in commercial and residential buildings

  Cold Chain Logistics Critical for maintaining and documenting temperature and humidity levels during the transportation of perishable good

  Manufacturing Ensures that production environments meet specific temperature and humidity requirements for quality contro

Logger Operation

The logger operates normally in low power mode and wakes up at configured logging intervals (default is 15 minutes). Once awake the logger measures temperature and humidity and logs next entry in the sensor log in the internal storage

If configured to do so, at this time the logger also connects to a specified WIFI SSID in client mode, then connects using MQTT protocol to a configured MQTT server and sends an MQTT publish message containing the taken temperature and humidity measurement

After this action, the logger returns to low power mode

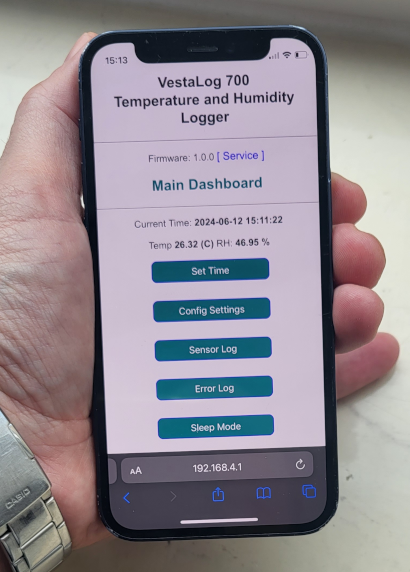

To configure the logger, view current status and download sensor log, the user can activate WIFI by pressing WIFI button and connecting to the internal web server on IP address: 192.168.4.1 port 80.

In addition the logger can activate WIFI and the web server daily at configured hour. The WIFI will remain active for the time of idle timeout (default is 15 minutes)

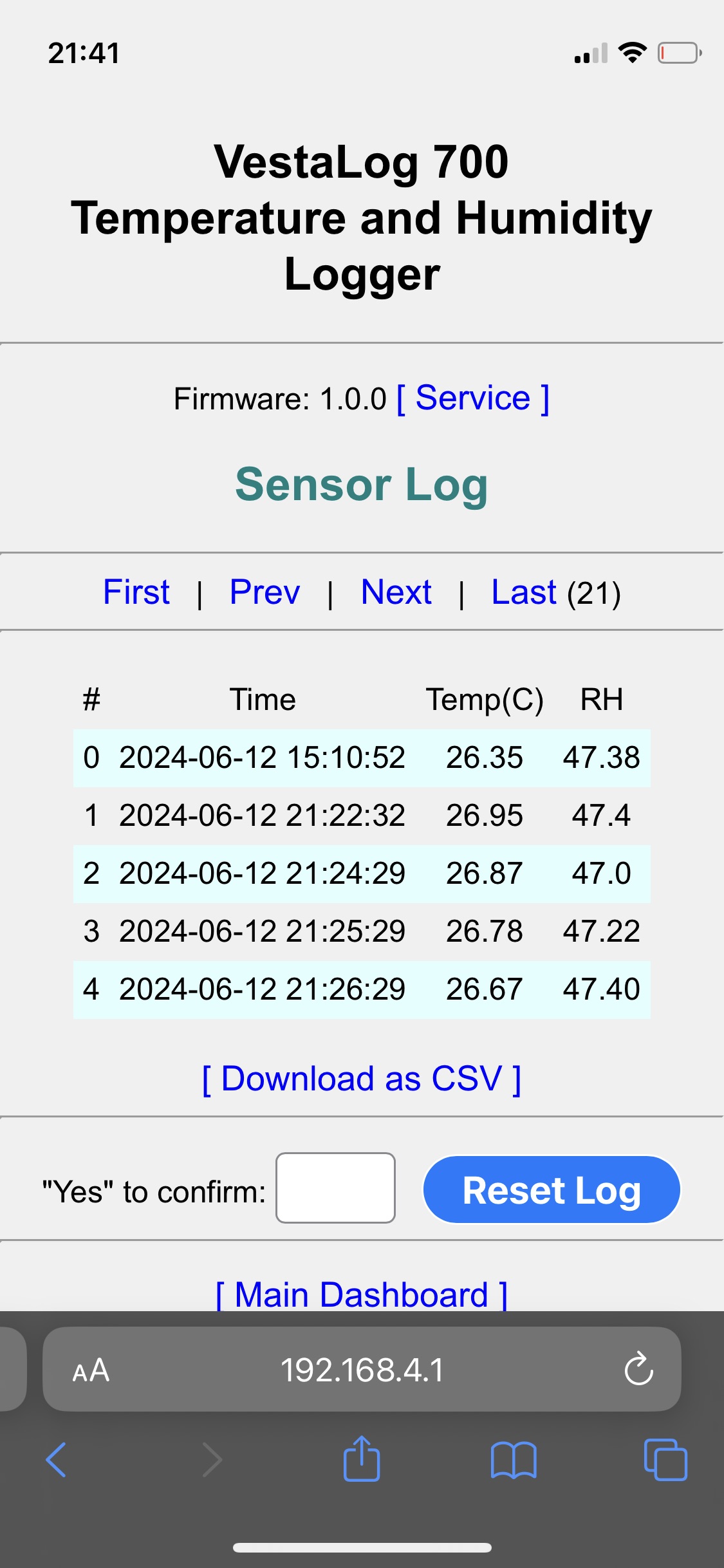

Sensor Log

Sensor log can be viewed and downloaded via built-in Web

Logger internal storage supports a maximum of 100000 records. When the maximum is reached the next reading overflows back to first record.

Sensor log can be fully downloaded as CSV file with the folliwing format:

"date";"time";"temperature";"humidity"
2024-06-12;15:10:52;26.35;47.38
2024-06-12;21:22:32;26.95;47.4
2024-06-12;21:24:29;26.87;47.0
2024-06-12;21:25:29;26.78;47.22
...

You can directly open this file from Excel or similar software.

The sensor log is re-settable by clicking “Reset Log” - this action resets the records to zero in the internal storage.

Technical Specifications

Final price with shipping will be shown in the next step and will be based on your country. In Europe shipping cost varies from 18 to 35 Euro

*NOTE: You can adjust quantity in the last step
