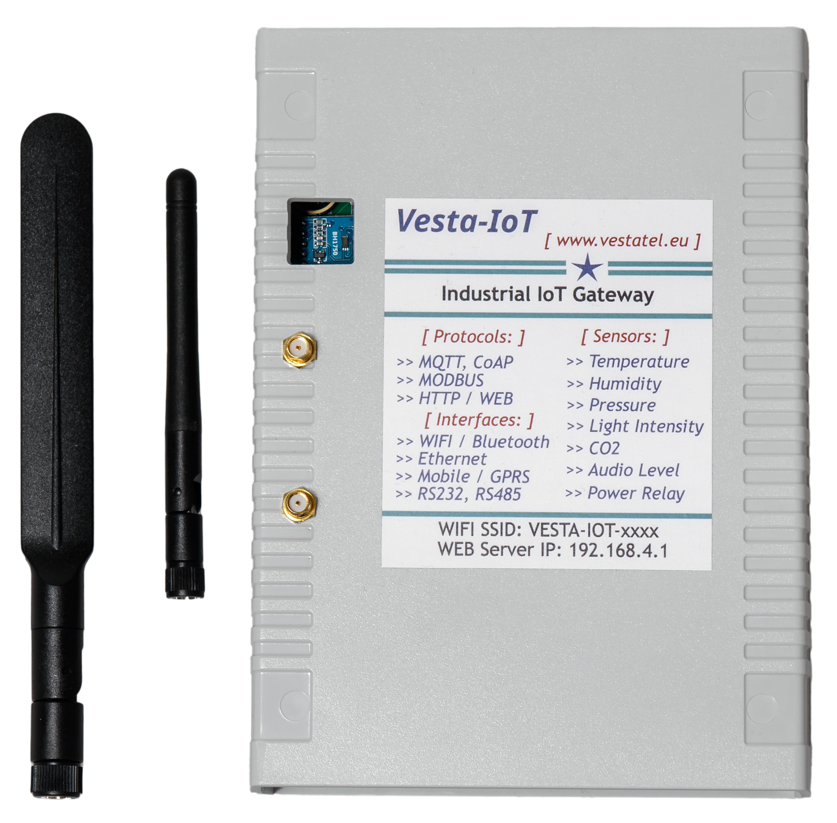

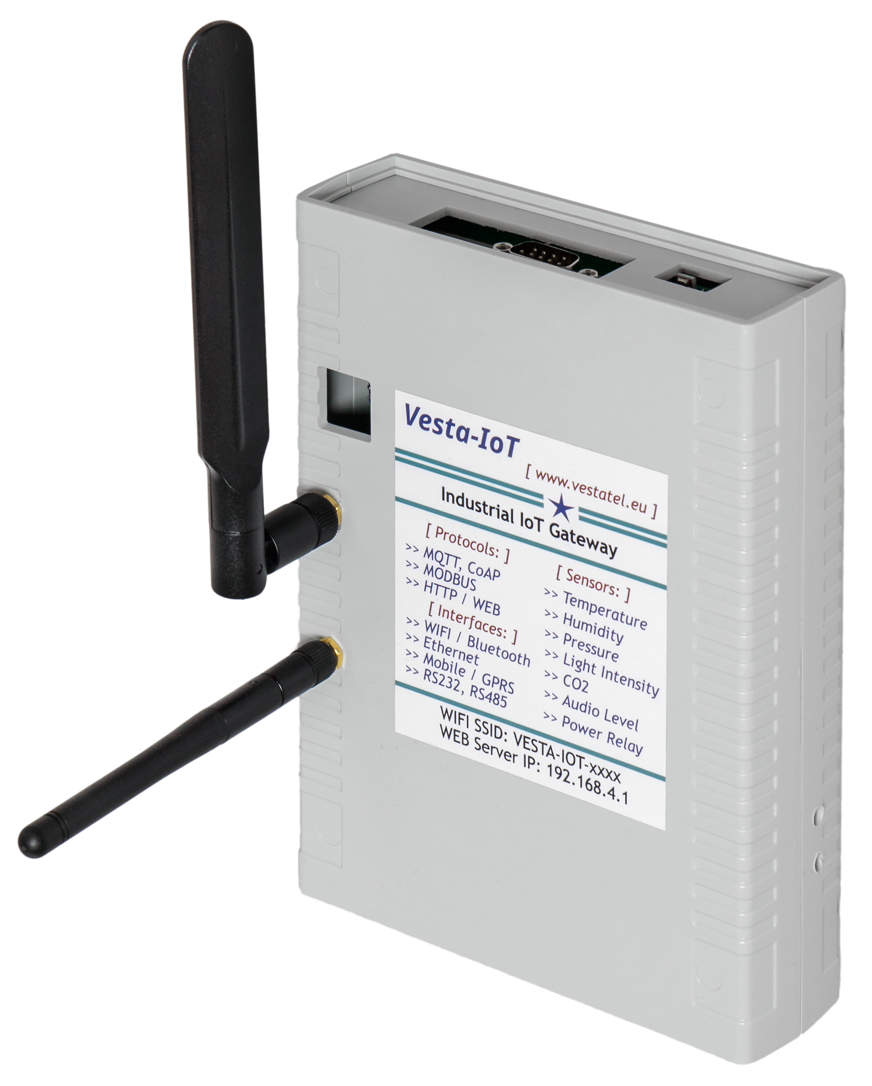

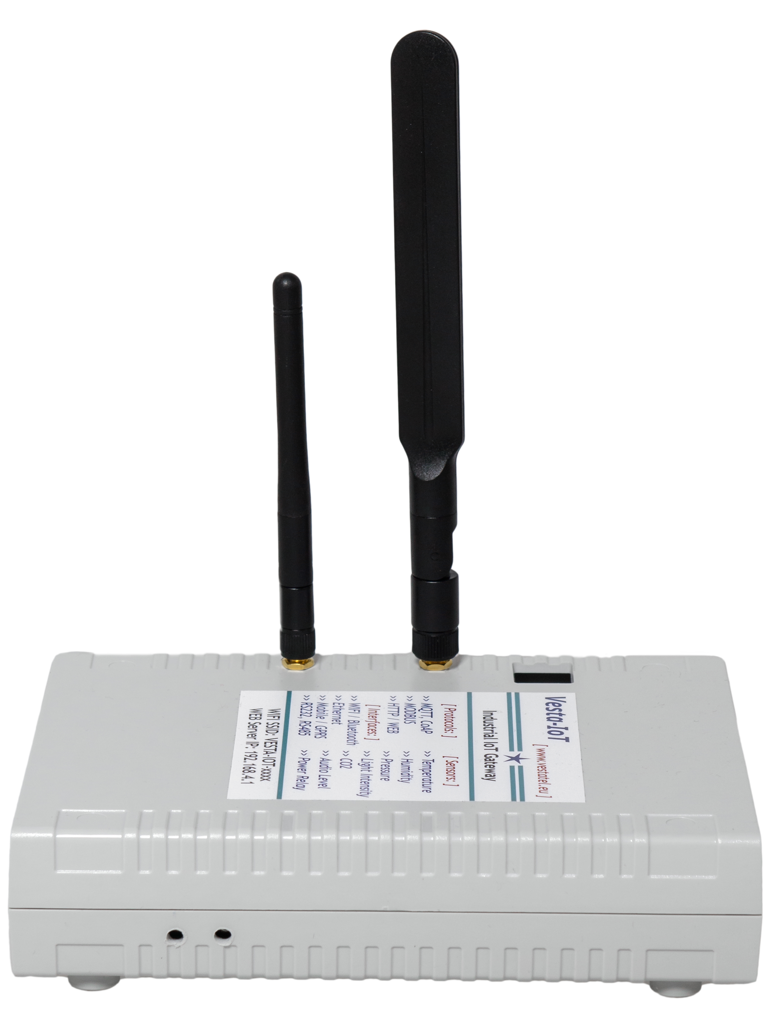

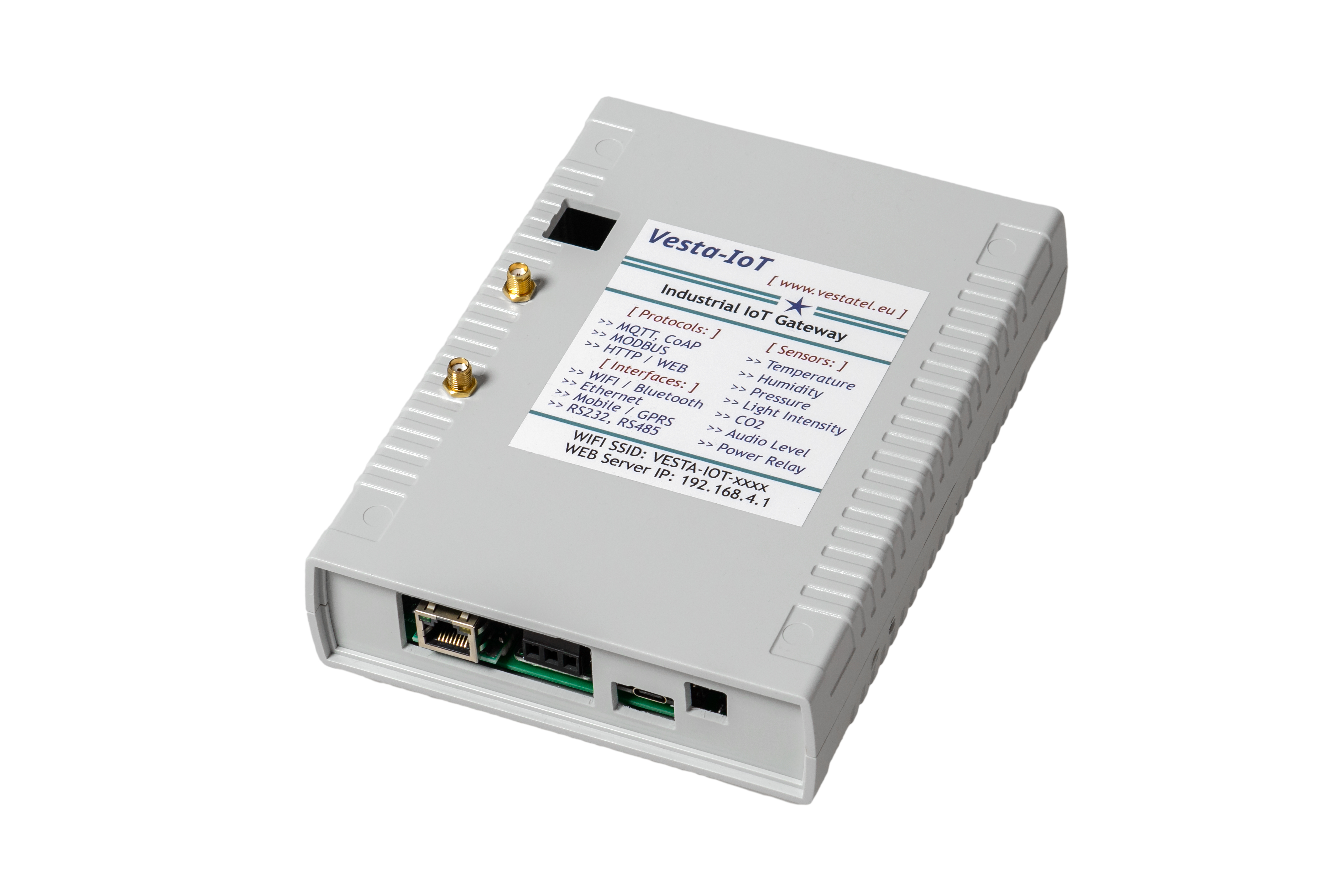

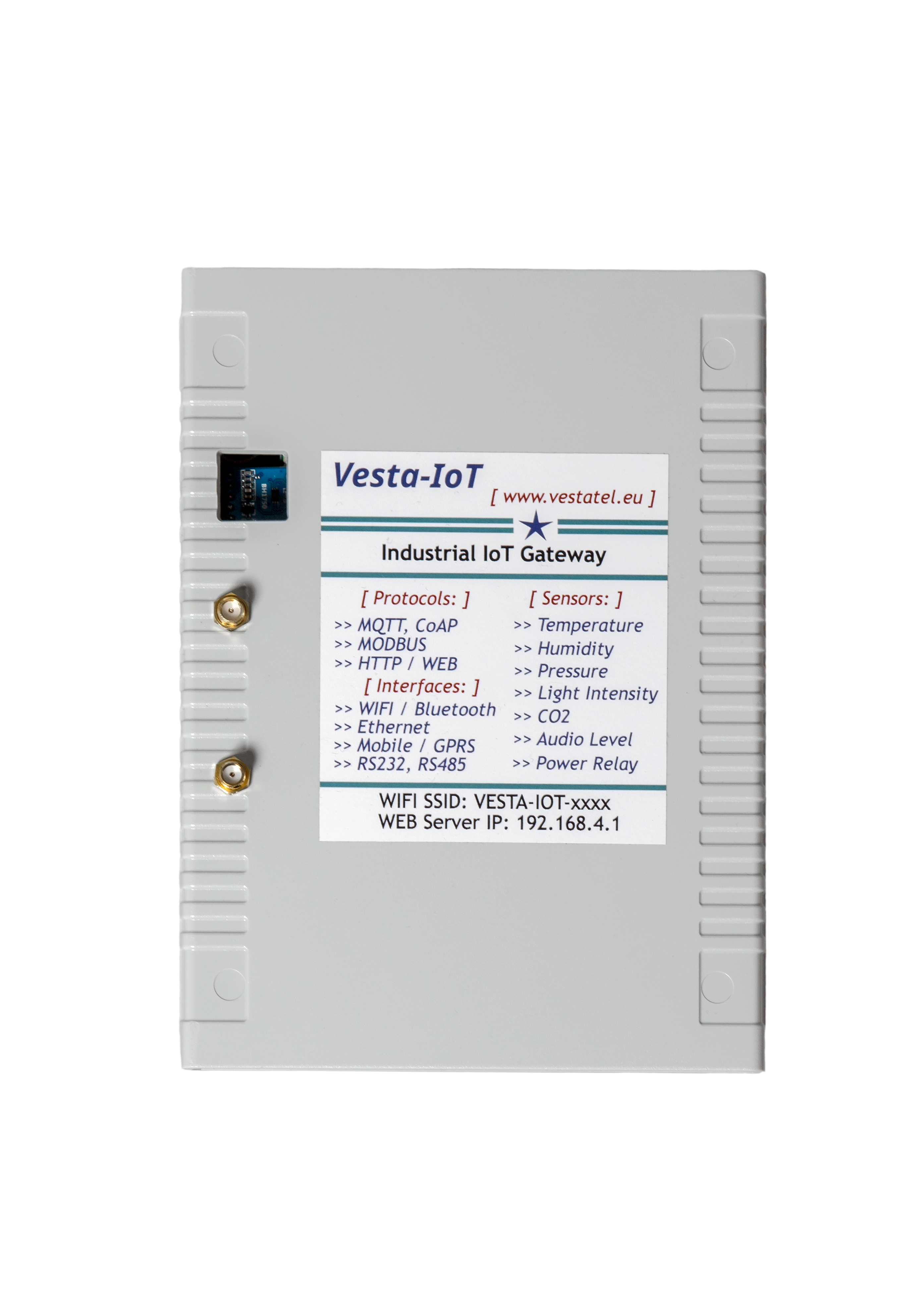

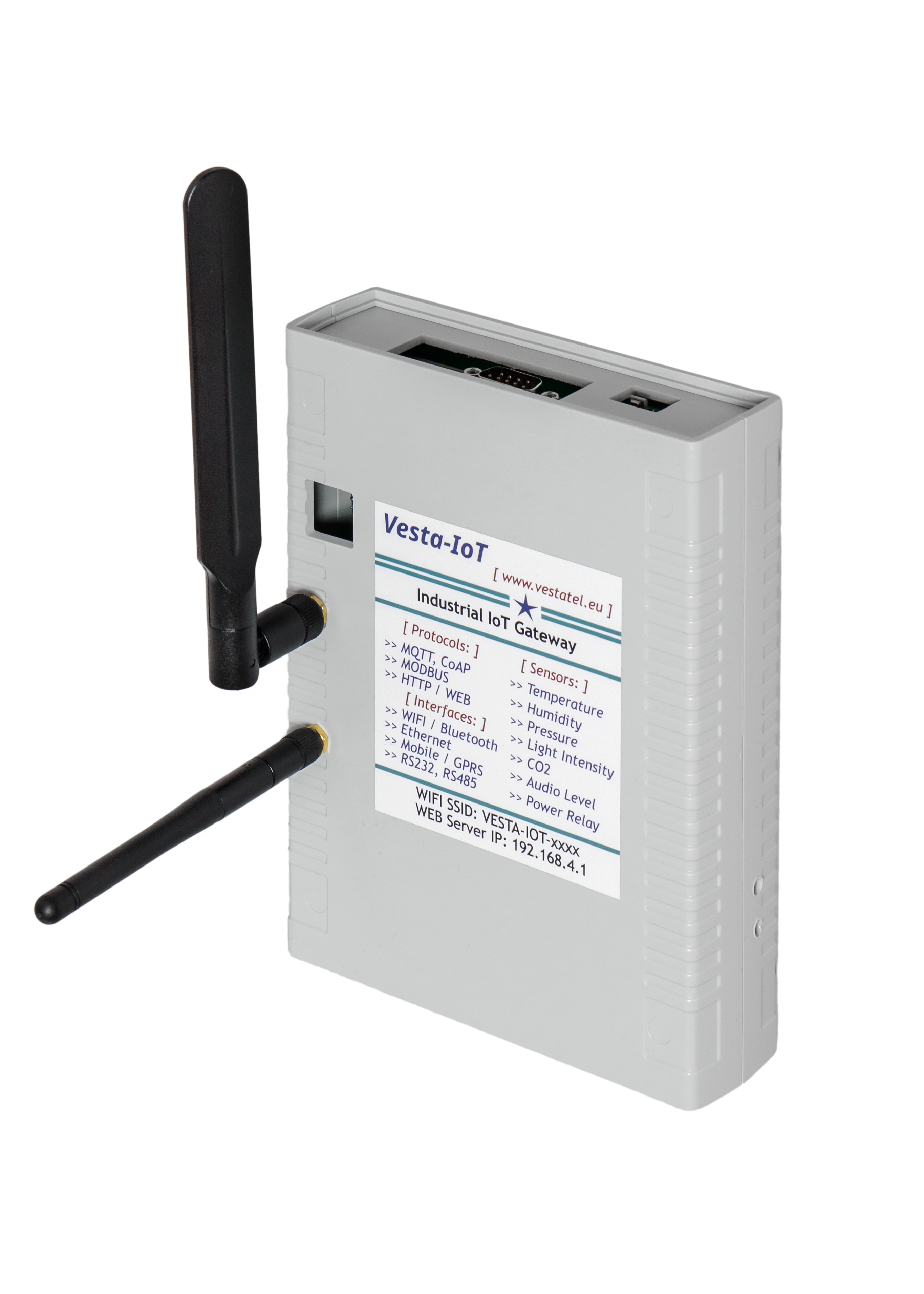

Vesta-IoT is an Industrial Internet of Things (IoT) Gateway. It continuously monitors multiple on-board sensors - Temperature, Humidity, Pressure, Light Intensity, CO2 concentration, Air Resistance, Audio / Noise Level. On each sensor poll cycle Vesta-IoT re-calculates Air Quality Index (IAQ) given the relative humidity and air resistance and exposes IAQ as another sensor value. Vesta-IoT can periodically send the sensor readings using MQTT and also makes the data available using MODBUS, DNP3, IEC 60870-5-104, CoAP and HTTP / SOAP protocols.
The device also features an on-board AC power relay and various communication interfaces: WIFI, wired Ethernet, GSM/LTE/GPRS, RS232, RS485. Additionally Vesta-IOT acts as a data logger, saving sensor readings to non-volatile memory that can be later retrieved as a CSV file or viewed via Web UI
Built-In Environmental Sensors: - Temperature, Humidity, Pressure, Light Intensity, CO2 concentration, Air Resistance, Audio / Noise Level
Integrated AC Power Relay: Allows switching on or off AC (up to 250 AC) or DC power loads with multiple ways to control the relay: Via Web UI, Modbus, CoAP, MQTT, via internal time scheduler or based on internal sensors crossing defined threshold values

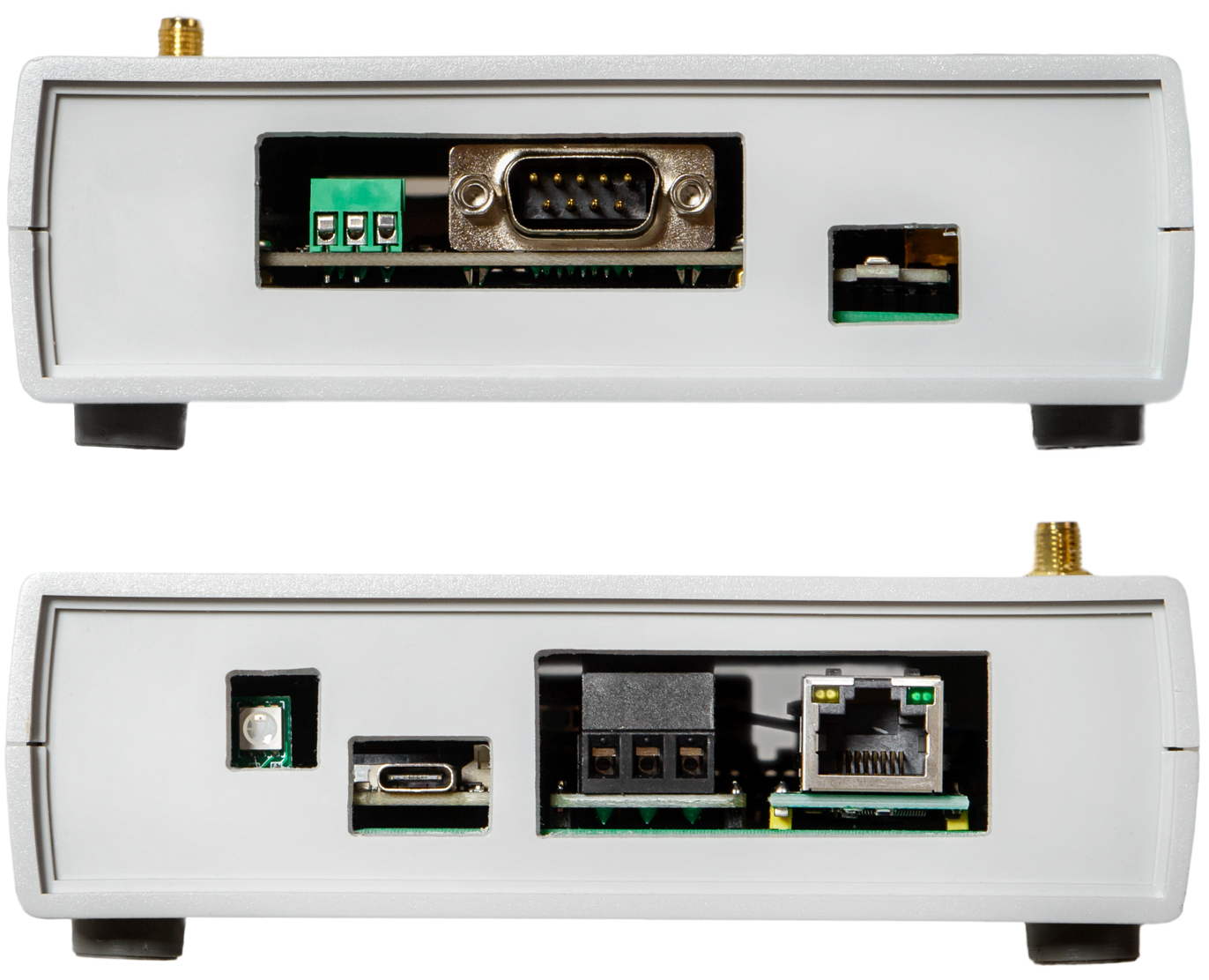

Multiple Communication Interfaces: - WiFi with external antenna in AP or Station Mode, Wired Ethernet, embedded LTE/GSM/GPRS module, RS232 / RS485 interfaces
Multiple Communication Protocols: - DHCP, TCP/IP, UDP/IP, WEB SERVER, SOAP SERVER, MQTT CLIENT, CoAP Server, DNP3 Server, IEC 60870-5-104 Server, Modbus TCP Server, Modbus RTU Client (over RS232 / RS485), RS232 Server, NTP, TCP Sender (client and server), UDP Sender, SOAP server
Real-Time Clock: With an internal battery backup, ensures accurate time-stamping and event scheduling, with NTP time synchronization
Data Logger: Saves sensor readings to non-volatile memory periodically for later retrieval as CSV file or viewing via Web UI (Sensor Log)

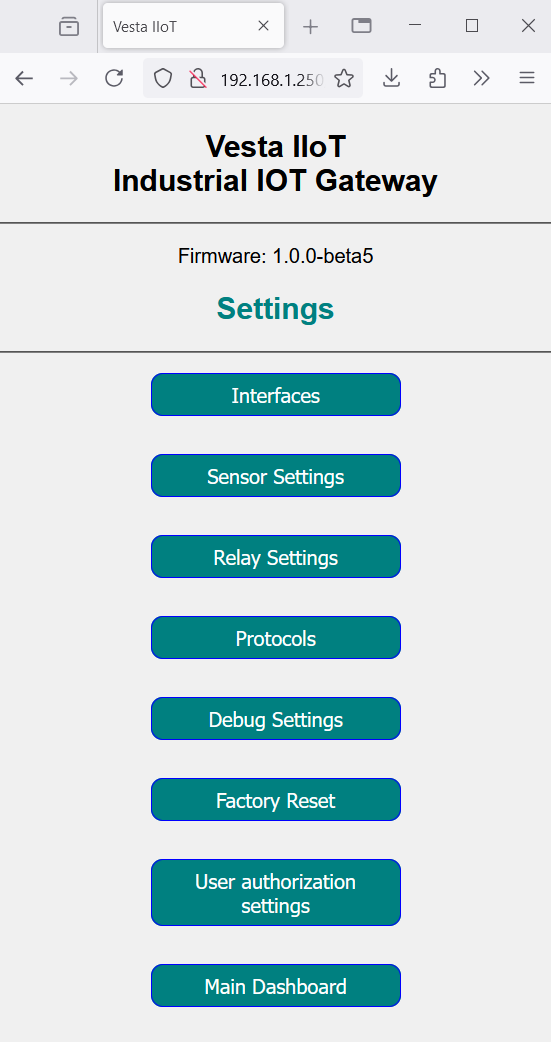

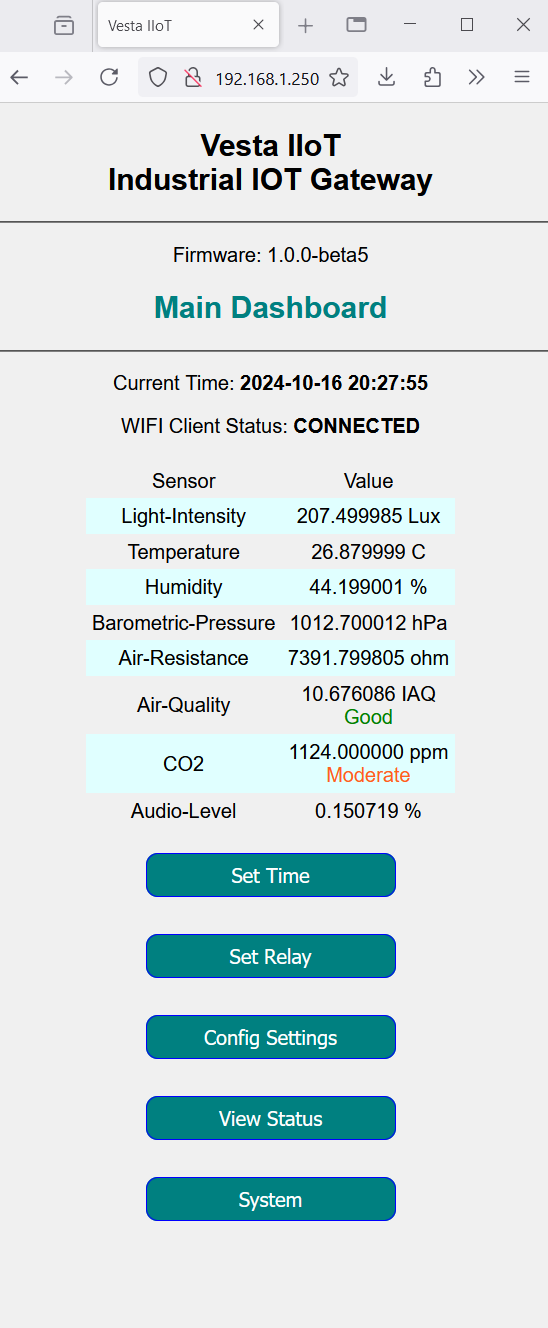

Built-in Web Server: For easy configuration and status monitoring
SOAP API Server: Main functions of Vesta-IOT device can be accessed bia SOAP protocol: reading sensors, controlling the relay, reading / setting time, etc.
TCP Diagnostic / CLI Console: TCP console server can be used for essencial maintenance and status checking
[ Live Demo ]
Smart Building Automation: Monitor and control environmental conditions such as temperature, humidity, light, and CO2 levels for optimized energy management and comfort in office buildings, factories, or warehouses
Environmental and Air Quality Monitoring: Deploy in urban areas or industrial zones to measure noise levels, air resistance, CO2 concentration, and other factors affecting air quality, providing critical data for environmental compliance and safety regulations.
Lab environment monitoring Monitor environmental sensors in laboratories: light intensity, temperature, humidity, and CO2 levels to ensure optimal test or production conditions
Agriculture and Greenhouses Automate environmental control in greenhouses by monitoring light intensity, temperature, humidity, and CO2 levels to ensure optimal growing conditions and improved crop yield
HVAC Systems Enhance Heating, Ventilation, and Air Conditioning systems by integrating real-time sensor data for efficient climate control and predictive maintenance
Energy Management Systems Control and monitor power usage in industrial plants or commercial buildings by scheduling the AC power relay to manage loads based on real-time sensor data or time-based event
Industrial Equipment Monitoring Leverage multiple communication protocols to track equipment performance, detect faults, and trigger automated actions such as powering equipment on/off via the integrated AC relay
Smart Grid Applications Integrate with power distribution systems to enable remote management and automation, helping to balance loads, optimize energy usage, and improve grid reliability
Remote Site Monitoring Utilize GSM/LTE and Wi-Fi communication for remote monitoring and control of environmental factors and equipment at remote or isolated industrial sites
Data Centers and Server Rooms Monitor critical conditions such as temperature, humidity, and airflow to ensure optimal operating conditions and prevent overheating or other environmental risks
| Feature / Model | Model 100 | Model 200 | Model 300 | Model 400M | Model 400S | Model 500 |
|---|---|---|---|---|---|---|
| COMMUNICATION INTERFACES | ||||||
| WIFI | Yes | Yes | Yes | Yes | Yes | Yes |
| Ethernet | -- | Yes | Yes | -- | -- | Yes |
| LTE / Mobile | -- | -- | -- | Yes | -- | Yes |
| Serial RS232 + RS485 | -- | -- | -- | -- | Yes | Yes |
| ON - BOARD SENSORS | ||||||
| Temperature Sensor | Yes | Yes | Yes | Yes | Yes | Yes |
| Humidity Sensor | Yes | Yes | Yes | Yes | Yes | Yes |
| Pressure Sensor | Yes | Yes | Yes | Yes | Yes | Yes |
| Air Resistance Sensor | Yes | Yes | Yes | Yes | Yes | Yes |
| IAQ - Index of Air Quality | Yes | Yes | Yes | Yes | Yes | Yes |
| CO2 Sensor | -- | -- | Yes | Yes | Yes | Yes |
| Audio Level Sensor | -- | -- | Yes | Yes | Yes | Yes |
| Light Intensity Sensor | -- | -- | Yes | Yes | Yes | Yes |
| OTHER HARDWARE | ||||||
| Digital Output (Power Relay) | -- | -- | Yes | Yes | Yes | Yes |
| SOFTWARE FEATURES | ||||||
| Web Interface for Configuration, Control and Monitoring | Yes | Yes | Yes | Yes | Yes | Yes |
| SOAP API Server for Configuration, Control and Monitoring | Yes | Yes | Yes | Yes | Yes | Yes |
| NTP synchronization of real-time clock | Yes | Yes | Yes | Yes | Yes | Yes |
| MQTT Client | Yes | Yes | Yes | Yes | Yes | Yes |
| MODBUS TCP Server | Yes | Yes | Yes | Yes | Yes | Yes |
| MODBUS RTU Client over RS232 / RS485 | -- | -- | -- | -- | Yes | Yes |
| CoAP Server | Yes | Yes | Yes | Yes | Yes | Yes |
| DNP3 Server | Yes | Yes | Yes | Yes | Yes | Yes |
| IEC 60870-5-104 Server | Yes | Yes | Yes | Yes | Yes | Yes |
| UDP Sender | Yes | Yes | Yes | Yes | Yes | Yes |
| TCP Sender (TCP client and TCP Server) | Yes | Yes | Yes | Yes | Yes | Yes |
| TCP Console Server | Yes | Yes | Yes | Yes | Yes | Yes |
| TCP Serial Server over RS232 | -- | -- | -- | -- | Yes | Yes |
| Output Power Relay Control (Time Scheduled, sensor threshold based, Manual from the web UI) | -- | -- | Yes | Yes | Yes | Yes |
| Data Logger (Sensor Log) | Yes | Yes | Yes | Yes | Yes | Yes |
Vesta-IoT gateway takes the sensor readings at regular configured intervals. These sensors include light intensity, temperature, humidity, pressure, air quality, CO2 concentration, audio noise level. After each reading, if configured to do so, the data can be pushed over MQTT to MQTT broker. The data is also made continuously available to be presented to a connecting Modbus TCP client, a CoAP client over UDP or to a HTTP / Web client. The same sensor data is available through DNP3 Server, IEC 60870-5-104 Server or SOAP API Server
Additionally, vesta IOT acts as a Data Logger - sensor readings are periodically saved into non-volatile memory and can be later retrieved or viewed
The data can be transmitted / made available over WIFI in AP or Station mode, over wired Ethernet (LAN) or over LTE/GSM/GPRS.
The on-board power relay can be activated in persistent or Pulse On mode with configurable ON time directly from the Web UI or using configured scheduled time intervals. Additionally the relay can be configured to activate and de-activate based on any sensor value crossing the configurable high and low thresholds. The relay can also be controlled over Modbus, DNP3, IEC 60870-5-104, CoAP, MQTT or HTTP / SOAP protocols
The RS232 interface can be used as part of Serial Server feature which provides access to any device connected to the RS232 serial interface over the TCP.
Temperature Sensor |
|
| Measurement Range | -40 C .. +85 C |
| Accuracy | From +/- 0.5C to +/-1.0C |
| Resolution | 0.01 C |
Pressure Sensor | |
| Pressure Range | 300 .. 1100 hPa |
| Accuracy | +- 0.6 hPa |
| Resolution | 0.18 hPa |
Relative Humidity Sensor | |
| Accuracy | +- 3 %RH |
| Resolution | 0.008 %RH |
Gas Resistance Sensor | |
| Resolution | 0.08 % |
CO2 Sensor | |
| Operating Range | 0 ppm to 32000 ppm |
| Accuracy | +- 30 ppm (+3%) |
Light Intensity Sensor | |
| Operating Range | 1 .. 65525 Lux |
| Measurement Variation | +/- 20% |
| Measurement Accuracy | 1.2 |
| Resolution | 1 Lux |
Audio Level Sensor | |
| Operating Range | 0 to 100% Audio Volume Power |
Power Relay | |
| Operating Range | Max AC Voltage: 250VA, MAx current: 5A (resistive load), 2.5A (inductive load) |
Power Supply | |
| External USB-C | 5V, 3A |
WIFI | |
| Standards & Protocols | IEEE 802.11 b/g/n, 2.4 GHz, AP/STA modes |
| Communication Range | 30-50m indoor, Up to 200m outdoor without obsticles |
LTE/GSM/GPRS | |
| Standards & Protocols | LTE-FDD: B1, B3, B5, B7, B8, B20, 2G: GSM/GPRS/EDGE: 900/1800 MHz |
Wired Ethernet (LAN) | |
| Standards & Protocols | 10BaseT/100BaseTX, Auto Negotiation (Full/half duplex) |
RS232 / RS485 | |
| Transient Voltage Suppressor | DB9 socket for RS232, RX, TX GND terminals for RS485, Configurable RS485 termination resistor |
Software | |
| Supported Protocols / Features | DHCP, TCP/IP, UDP/IP, WEB SERVER, SOAP API SERVER, MQTT CLIENT, CoAP Server, Modbus TCP Server, DNP3 Server, IEC 60870-5-104 Server, RS232 Server, NTP, Data Logger |
from 240 Euro
Price includes free shipping
*NOTE: You can adjust quantity in the last step
